Innovated design - M8 pointed grub screw in top and bottom of spigot for adjustability to tilt glass forward or back.
Duplex stainless steel 2205.
Face mount spigot – fix to vertical surface of concrete, timber/steel beams or bearers.
2-part spigot for easy install: (1) rear plate fixed to vertical surface (2) spigot attaches to rear plate with 2 x M8 counter sunk screws.
Tilt adjustable – innovative design allows for tilt adjustment by simply turning top and bottom M8 grub screws • Glass alignment adjustability is a huge installation advantage.
Timber/beam fixing – 2 x fixing points in the rear plate for increased strength.
Concrete fixing – ideal for narrow slabs with 1 x sturdy M18 fixing.
Neat finish – slide in cover plate hides exposed screws on spigot front.
Earthing terminal included.
3mm stackable horseshoe packers sold separately that can inserted behind rear plate to overcome uneven vertical surfaces.

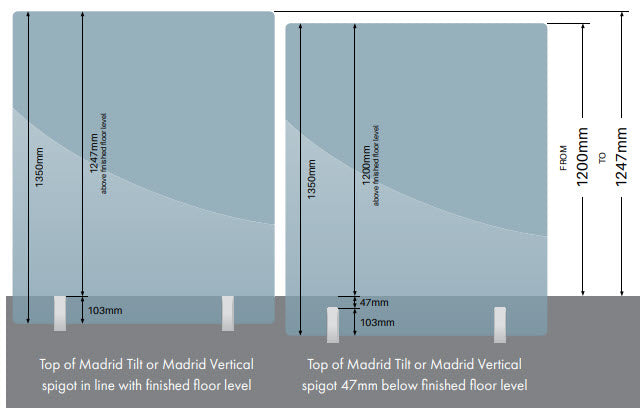

Note: Taller glass needs to be ordered to be 1200mm compliant, check out our 1350mm High panels that can be offset for specified height.
