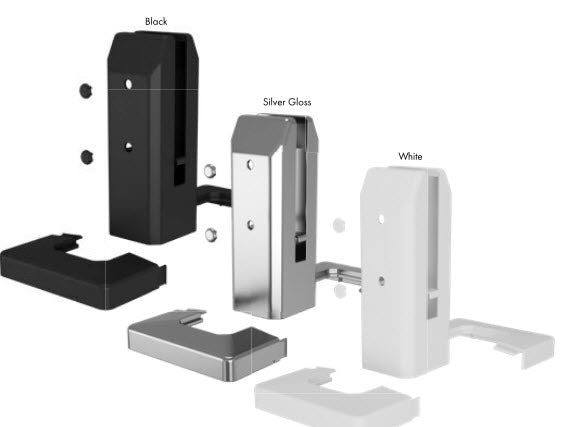

Spigot Insulator Cover to Eliminate Earthing Requirements.
Earthing of spigots is an important consideration when installing pool fencing. Electrical safety laws and wiring rules contain provisions regarding earthing within 125cm of the pool water edge. Earthing reduces the risk of an electrical shock should there be an electrical fault. The cost involved of earthing spigots is generally high. Importantly, earthing contemplates conductive materials. We have designed and patented a spigot insulator which can be sleeved over a stainless steel Madrid core drill spigot whereby it is not possible to touch the metal spigot. In this way, the installed spigot is completely insulated and non-conductive to touch. Materials which are non-conductive do not require earthing.
Made from ASA thermoplastic – excellent weather & chemical resistance and high impact strength
- Non-conductive material.
- Includes 1x dress ring.
- Also includes 2x caps which fit into friction grub screw holes.
- Simply sleeve over Madrid stainless steel core drill spigot prior to install. Then install glass with spigot as per normal.
- Simply sleave over Madrid stainless base plated spigot after fixing. then install glass as per normal.
- Can be retro-fitted to existing core drill or base plated Madrid spigots – carefully cut off excess base of spigot insulator to suit required insulator height.
- Specially designed top section prevents chance of pulling insulating cover away from spigot.
- Sold as single unit (1 x Spigot insulator, 1 x dress ring & 2x caps for both types core/base plate).
